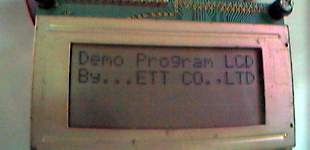

[ บทความ : ตัวอย่างสำหรับ 68HC11 V2 ตอนที่1 ] ทดสอบติดต่อกับ LCD แบบตัวอักษร |
ตัวอย่างซอร์สโค้ดสำหรับ ติดต่อกับ LCD แบบตัวอักษร ด้วยบอร์ด CP-68HC11 V2 ซึ่งตัวอย่างสำหรับเขียนเพื่อนำไปโหลดเป็นมอนิเตอร์ (โหลดลง Flash memory) เป็นดังนี้
;/**********************************/; ;/* Demo Program For Character LCD */; ;/* Hardware : ET-CP68HC11 Ver 2.0 */; ;/* Complier : AS11NEW.EXE (V1.03) */; ;/**********************************/; ; ;/* Address Port of Character LCD WRC_COMM EQU $1400 ; Write Instruction LCD RDC_COMM EQU $1401 ; Read Address & Busy Flag WRC_DATA EQU $1402 ; Write Data Port LCD RDC_DATA EQU $1403 ; Read Data From DD-RAM ORG $00H ; DSP_INDX RMB 1 ; Display Pointer Index DSP_CNT RMB 1 ; Display Font Count LCD_BUFF RMB 32 ; LCD Display Buffer 16X2 ORG $A000 ; Start at Rom Monitor ; START LDS #$9FFF ; Stack on RAM 32KB LDX #$1000 ; Base Register Index JSR INIT_LCD ; Initial LCD 16x2 ; LDAA #$01 ; Clear display STAA WRC_COMM ; ;/************************/; ;/* Display Logo Sign-on */; ;/************************/; ; DSP_MAIN LDAA #1 STAA DSP_INDX LDAA #20 STAA DSP_CNT ; LFT_RGT1 JSR SHL1_DSP JSR WR_LCD16X2 LDX #$FFFF DSP_DLY0 DEX BNE DSP_DLY0 DEC DSP_CNT BNE LFT_RGT1 ; PSHB LDAB #10 DSP_DL1 LDX #$FFFF DSP_DL2 DEX BNE DSP_DL2 DECB BNE DSP_DL1 PULB ; LDAA #20 STAA DSP_CNT ; RGT_LFT1 JSR SHR1_DSP JSR WR_LCD16X2 LDX #$FFFF DSP_DLY3 DEX BNE DSP_DLY3 DEC DSP_CNT BNE RGT_LFT1 ; PSHB LDAB #10 DSP_DL4 LDX #$FFFF DSP_DL5 DEX BNE DSP_DL5 DECB BNE DSP_DL4 PULB ; BRA DSP_MAIN ;/**********************/; ;/* Table Logo Display */; ;/**********************/; ; TAB_ETT1 FCC 'Example LCD 16x2' FCC ' ' FCC 'Demo Program LCD' FCC ' ' FCB $20,$20 ; TAB_ETT2 FCC ' ' FCC 'By...ETT CO.,LTD' FCC ' ' FCC 'CP-68HC11 Ver2.0' FCB $20,$20 TAB_ETT3 FCC 'Example LCD 16x2' FCC ' ' FCC 'Demo Program LCD' FCC 'Example LCD 16x2' TAB_ETT4 FCC 'CP-68HC11 Ver2.0' FCC 'By...ETT CO.,LTD' FCC ' ' FCC 'CP-68HC11 Ver2.0' ;/**********************/; ;/* Shift Left Display */; ;/**********************/; ; SHL1_DSP LDX #TAB_ETT1-1 LDY #LCD_BUFF+0 LDAB DSP_INDX ABX LDAB #16 SHL_DSP1 LDAA 0,X STAA 0,Y INX INY DECB BNE SHL_DSP1 ; SHL_DSP2 LDX #TAB_ETT2+51 LDY #LCD_BUFF+31 LDAB DSP_INDX SHL_DSP3 DEX DECB BNE SHL_DSP3 LDAB #16 SHL_DSP4 LDAA 0,X STAA 0,Y DEX DEY DECB BNE SHL_DSP4 INC DSP_INDX RTS ;/***********************/; ;/* Shift Right Display */; ;/***********************/; ; SHR1_DSP LDX #TAB_ETT3+55 LDY #LCD_BUFF+15 LDAB DSP_INDX SHR_DSP1 DEX DECB BNE SHR_DSP1 LDAB #16 SHR_DSP2 LDAA 0,X STAA 0,Y DEX DEY DECB BNE SHR_DSP2 ; SHR_DSP3 LDX #TAB_ETT4-5 LDY #LCD_BUFF+16 LDAB DSP_INDX ABX LDAB #16 SHR_DSP4 LDAA 0,X STAA 0,Y INX INY DECB BNE SHR_DSP4 INC DSP_INDX RTS ;/*************************/; ;/* Initial Dotmatrix LCD */; ;/* 8-Bits Data Interface */; ;/*************************/; ; INIT_LCD PSHA JSR BUSY_LCD ; Wait LCD Ready LDAA #$38 ; Function Set DL=1,N=1,F=0 STAA WRC_COMM ; 8Bit-Data,2-Line,5x7-Dots ; JSR BUSY_LCD ; Wait LCD Ready LDAA #$0C ; Display on-off Control D=1,C=1,B=1 STAA WRC_COMM ; Display on,Cursor off,Cursor not Blink ; JSR BUSY_LCD ; Wait LCD Ready LDAA #$06 ; Entry Mode Set I/D=1,S=0 STAA WRC_COMM ; Increment Position,Display Shift Enable ; JSR BUSY_LCD ; Wait LCD Ready LDAA #$01 ; Clear display STAA WRC_COMM PULA RTS ;/***********************/; ;/* Check Busy Flag LCD */; ;/***********************/; ; BUSY_LCD PSHA WAITBUSY LDAA RDC_COMM ; Read Busy Flag ANDA #$80 BNE WAITBUSY ; Repeat Until Busy PULA RTS ;/*********************/; ;/* Clear Display LCD */; ;/*********************/; ; CLR_LCD JSR BUSY_LCD PSHA LDAA #$01 ; Clear Display Code STAA WRC_COMM PULA RTS ;/*******************/; ;/* Return Home LCD */; ;/*******************/; ; HOME_LCD JSR BUSY_LCD PSHA LDAA #$02 ; Return Home Code STAA WRC_COMM PULA RTS ;/***************************/; ;/* Set Cursor LCD Location */; ;/* Input : A (Address LCD) */; ;/***************************/; ; GOTO_LCD JSR BUSY_LCD PSHA ADDA #$80 ; Set DD-RAM Address STAA WRC_COMM PULA RTS ;/*********************/; ;/* Wrire Byte to LCD */; ;/* Input : A (ASCII) */; ;/*********************/; ; WR_LCD JSR BUSY_LCD STAA WRC_DATA ; Write Data to LCD RTS ;/*********************************/; ;/* Print ASCII data to LCD Port */; ;/* Usage : JSR PRINT_LCD */; ;/* : FCC 'xxxxxxxx' */; ;/* : FCB $00 */; ;/* Note : last byte = $00 */; ;/*********************************/; ; PRINT_LCD PULY ; Pop Stack PSHA PSHB PRN_LCD1 LDAA 0,Y ; Get Data For Print CMPA #$00 ; Check Last Byte BNE PRN_LCD2 ; Jump if not Last Byte BRA PRN_LCD3 PRN_LCD2 JSR WR_LCD ; Write Data to LCD INY BRA PRN_LCD1 PRN_LCD3 INY PULB PULA PSHY ; Push Stack RTS ;/**************************/; ;/* Wrire Data to LCD 16x2 */; ;/* Input : LCD_BUF(ASCII) */; ;/**************************/; ; WR_LCD16X2 PSHX PSHA PSHB LDX #LCD_BUFF ; Display Buffer LCD LDAA #$00 ; 1st Location Line1 JSR GOTO_LCD LDAB #16 ; 16 Character Count WR_LINE1 JSR BUSY_LCD ; Wait LCD Bysy LDAA 0,X STAA WRC_DATA INX DECB BNE WR_LINE1 ; LDAA #$40 ; 1st Location Line2 JSR GOTO_LCD LDAB #16 ; 16 Character Count WR_LINE2 JSR BUSY_LCD ; Wait LCD Bysy LDAA 0,X STAA WRC_DATA INX DECB BNE WR_LINE2 PULB PULA PULX RTS ORG $FFFE ; Reset Vector FDB START ENDกรณีที่เราต้องการเขียนโปรแกรมผ่านทาง Debug ของ ETT ก็จะดังต่อไปนี้
;/**********************************/; ;/* Demo Program For Character LCD */; ;/* Hardware : ET-CP68HC11 Ver 2.0 */; ;/* Complier : AS11NEW.EXE (V1.03) */; ;/**********************************/; ; ;/* Address Port of Character LCD WRC_COMM EQU $1400 ; Write Instruction LCD RDC_COMM EQU $1401 ; Read Address & Busy Flag WRC_DATA EQU $1402 ; Write Data Port LCD RDC_DATA EQU $1403 ; Read Data From DD-RAM ORG $00H ; DSP_INDX RMB 1 ; Display Pointer Index DSP_CNT RMB 1 ; Display Font Count LCD_BUFF RMB 32 ; LCD Display Buffer 16X2 ORG $2200 ; Start of Debugger User Area MAIN LDX #$1000 ; Base Register Index JSR INIT_LCD ; Initial LCD 16x2 ; LDAA #$01 ; Clear display STAA WRC_COMM ; ;/************************/; ;/* Display Logo Sign-on */; ;/************************/; ; DSP_MAIN LDAA #1 STAA DSP_INDX LDAA #20 STAA DSP_CNT ; LFT_RGT1 JSR SHL1_DSP JSR WR_LCD16X2 LDX #$FFFF DSP_DLY0 DEX BNE DSP_DLY0 DEC DSP_CNT BNE LFT_RGT1 ; PSHB LDAB #10 DSP_DL1 LDX #$FFFF DSP_DL2 DEX BNE DSP_DL2 DECB BNE DSP_DL1 PULB ; LDAA #20 STAA DSP_CNT ; RGT_LFT1 JSR SHR1_DSP JSR WR_LCD16X2 LDX #$FFFF DSP_DLY3 DEX BNE DSP_DLY3 DEC DSP_CNT BNE RGT_LFT1 ; PSHB LDAB #10 DSP_DL4 LDX #$FFFF DSP_DL5 DEX BNE DSP_DL5 DECB BNE DSP_DL4 PULB ; BRA DSP_MAIN ;/**********************/; ;/* Table Logo Display */; ;/**********************/; ; TAB_ETT1 FCC 'Example LCD 16x2' FCC ' ' FCC 'Demo Program LCD' FCC ' ' FCB $20,$20 ; TAB_ETT2 FCC ' ' FCC 'By...ETT CO.,LTD' FCC ' ' FCC 'CP-68HC11 Ver2.0' FCB $20,$20 TAB_ETT3 FCC 'Example LCD 16x2' FCC ' ' FCC 'Demo Program LCD' FCC 'Example LCD 16x2' TAB_ETT4 FCC 'CP-68HC11 Ver2.0' FCC 'By...ETT CO.,LTD' FCC ' ' FCC 'CP-68HC11 Ver2.0' ;/**********************/; ;/* Shift Left Display */; ;/**********************/; ; SHL1_DSP LDX #TAB_ETT1-1 LDY #LCD_BUFF+0 LDAB DSP_INDX ABX LDAB #16 SHL_DSP1 LDAA 0,X STAA 0,Y INX INY DECB BNE SHL_DSP1 ; SHL_DSP2 LDX #TAB_ETT2+51 LDY #LCD_BUFF+31 LDAB DSP_INDX SHL_DSP3 DEX DECB BNE SHL_DSP3 LDAB #16 SHL_DSP4 LDAA 0,X STAA 0,Y DEX DEY DECB BNE SHL_DSP4 INC DSP_INDX RTS ;/***********************/; ;/* Shift Right Display */; ;/***********************/; ; SHR1_DSP LDX #TAB_ETT3+55 LDY #LCD_BUFF+15 LDAB DSP_INDX SHR_DSP1 DEX DECB BNE SHR_DSP1 LDAB #16 SHR_DSP2 LDAA 0,X STAA 0,Y DEX DEY DECB BNE SHR_DSP2 ; SHR_DSP3 LDX #TAB_ETT4-5 LDY #LCD_BUFF+16 LDAB DSP_INDX ABX LDAB #16 SHR_DSP4 LDAA 0,X STAA 0,Y INX INY DECB BNE SHR_DSP4 INC DSP_INDX RTS ;/*************************/; ;/* Initial Dotmatrix LCD */; ;/* 8-Bits Data Interface */; ;/*************************/; ; INIT_LCD PSHA JSR BUSY_LCD ; Wait LCD Ready LDAA #$38 ; Function Set DL=1,N=1,F=0 STAA WRC_COMM ; 8Bit-Data,2-Line,5x7-Dots ; JSR BUSY_LCD ; Wait LCD Ready LDAA #$0C ; Display on-off Control D=1,C=1,B=1 STAA WRC_COMM ; Display on,Cursor off,Cursor not Blink ; JSR BUSY_LCD ; Wait LCD Ready LDAA #$06 ; Entry Mode Set I/D=1,S=0 STAA WRC_COMM ; Increment Position,Display Shift Enable ; JSR BUSY_LCD ; Wait LCD Ready LDAA #$01 ; Clear display STAA WRC_COMM PULA RTS ;/***********************/; ;/* Check Busy Flag LCD */; ;/***********************/; ; BUSY_LCD PSHA WAITBUSY LDAA RDC_COMM ; Read Busy Flag ANDA #$80 BNE WAITBUSY ; Repeat Until Busy PULA RTS ;/*********************/; ;/* Clear Display LCD */; ;/*********************/; ; CLR_LCD JSR BUSY_LCD PSHA LDAA #$01 ; Clear Display Code STAA WRC_COMM PULA RTS ;/*******************/; ;/* Return Home LCD */; ;/*******************/; ; HOME_LCD JSR BUSY_LCD PSHA LDAA #$02 ; Return Home Code STAA WRC_COMM PULA RTS ;/***************************/; ;/* Set Cursor LCD Location */; ;/* Input : A (Address LCD) */; ;/***************************/; ; GOTO_LCD JSR BUSY_LCD PSHA ADDA #$80 ; Set DD-RAM Address STAA WRC_COMM PULA RTS ;/*********************/; ;/* Wrire Byte to LCD */; ;/* Input : A (ASCII) */; ;/*********************/; ; WR_LCD JSR BUSY_LCD STAA WRC_DATA ; Write Data to LCD RTS ;/*********************************/; ;/* Print ASCII data to LCD Port */; ;/* Usage : JSR PRINT_LCD */; ;/* : FCC 'xxxxxxxx' */; ;/* : FCB $00 */; ;/* Note : last byte = $00 */; ;/*********************************/; ; PRINT_LCD PULY ; Pop Stack PSHA PSHB PRN_LCD1 LDAA 0,Y ; Get Data For Print CMPA #$00 ; Check Last Byte BNE PRN_LCD2 ; Jump if not Last Byte BRA PRN_LCD3 PRN_LCD2 JSR WR_LCD ; Write Data to LCD INY BRA PRN_LCD1 PRN_LCD3 INY PULB PULA PSHY ; Push Stack RTS ;/**************************/; ;/* Wrire Data to LCD 16x2 */; ;/* Input : LCD_BUF(ASCII) */; ;/**************************/; ; WR_LCD16X2 PSHX PSHA PSHB LDX #LCD_BUFF ; Display Buffer LCD LDAA #$00 ; 1st Location Line1 JSR GOTO_LCD LDAB #16 ; 16 Character Count WR_LINE1 JSR BUSY_LCD ; Wait LCD Bysy LDAA 0,X STAA WRC_DATA INX DECB BNE WR_LINE1 ; LDAA #$40 ; 1st Location Line2 JSR GOTO_LCD LDAB #16 ; 16 Character Count WR_LINE2 JSR BUSY_LCD ; Wait LCD Bysy LDAA 0,X STAA WRC_DATA INX DECB BNE WR_LINE2 PULB PULA PULX RTS ENDสามารถ download ไฟล์ตัวอย่างของบอร์ด พร้อม assembler ได้เลยครับ
