[ บทความ : ตัวอย่างสำหรับ 68HC11 V2 ตอนที่ 3 ] ทดสอบติดต่อกับ ADC |
ตัวอย่างซอร์สโค้ดสำหรับ ADC กับบอร์ด CP-68HC11 V2 สำหรับการเขียนเพื่อเป็นโปรแกรมมอนิเตอร์เป็นดังนี้

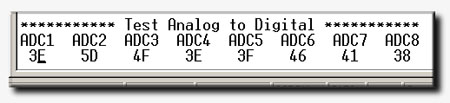

;/**********************************/; ;/* Demo Program For A/D 8 Channel */; ;/* Hardware : ET-CP68HC11 Ver 2.0 */; ;/* Complier : AS11NEW.EXE (V1.03) */; ;/**********************************/; ; BAUD EQU $2B ; SCI Baud rate control Reg. SCCR1 EQU $2C ; SCI Control Register1 SCCR2 EQU $2D ; SCI Control Register2 SCSR EQU $2E ; SCI Status Register SCDR EQU $2F ; SCI Data (RDR=Read,TDR=Write) ; ADCTL EQU $1030 ; ADC Control Register ADR1 EQU $1031 ; ADC Result Register1 ADR2 EQU $1032 ; ADC Result Register2 ADR3 EQU $1033 ; ADC Result Register3 ADR4 EQU $1034 ; ADC Result Register4 OPTION EQU $1039 ORG $A000 ; Start at ROM Monitor START LDS #$9FFF ; Stack on RAM 32KB LDX #$1000 ; Base Register Index LDAA #%10010011 ; Initial Option ADC STAA OPTION JSR INIT_SCI ; Initial SCI = 9600,N,8,1,P ; JSR PRINT_SCI FCB $0D,$0A FCC '*********** Test Analog to Digital ***********' FCB $0D,$0A FCC 'ADC1 ADC2 ADC3 ADC4 ADC5 ADC6 ADC7 ADC8' FCB $0D,$0A,$00 TEST_ADC JSR MULT_ADC1 ; Convert ADC1..4 LDAA #' ' JSR TX_SCI LDAA ADR1 ; ADC1 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR2 ; ADC2 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR3 ; ADC3 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR4 ; ADC4 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; JSR MULT_ADC2 ; Convert ADC5..8 LDAA ADR1 ; ADC5 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR2 ; ADC6 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR3 ; ADC7 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR4 ; ADC8 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #$0D JSR TX_SCI JMP TEST_ADC ;/*******************************/; ;/* Convert Hex to ASCII to A,B */; ;/* Input = ACCA */; ;/* Output = ACCA Hi-byte */; ;/* ACCB Low-byte */; ;/*******************************/; ; HEX_2ASC PSHA JSR HEX_TO_ASC TAB ; Transfer B <- A (B = Lo byte) PULA RORA ; Swap A RORA RORA RORA JSR HEX_TO_ASC RTS ;/*******************************/; ;/* Convert Hex (0-F) to ASCII */; ;/* Input = Register ACC (Hex) */; ;/* Output = Register ACC (ASC) */; ;/*******************************/; ; HEX_TO_ASC CLC ; clear carry bit ANDA #%00001111 CMPA #$09 BNE HTOA1 SEC ; set carry bit HTOA1 BCC HTOA2 ; > 0AH ORAA #$30 ; < 0AH JMP END_HTOA HTOA2 SBCA #$09 ; > 0AH ORAA #$40 END_HTOA RTS ;/*********************************/; ;/* Multiple 4 Channel Low (LSB) */; ;/* Output : ADR1 (Ch1 Result) */; ;/* : ADR2 (Ch2 Result) */; ;/* : ADR3 (Ch3 Result) */; ;/* : ADR4 (Ch4 Result) */; ;/*********************************/; ; MULT_ADC1 PSHA LDAA #%00010000 ; Multiple 4 Channel LSB STAA ADCTL CONVERT1 LDAA ADCTL ANDA #$80 ; Convertion Complete Flag BEQ CONVERT1 ; Wait ADC Convert Ready PULA RTS ;/*********************************/; ;/* Multiple 4 Channel High (MSB) */; ;/* Output : ADR1 (Ch5 Result) */; ;/* : ADR2 (Ch6 Result) */; ;/* : ADR3 (Ch7 Result) */; ;/* : ADR4 (Ch8 Result) */; ;/*********************************/; ; MULT_ADC2 PSHA LDAA #%00010100 ; Multiple 4 Channel MSB STAA ADCTL CONVERT2 LDAA ADCTL ANDA #$80 ; Convertion Complete Flag BEQ CONVERT2 ; Wait ADC Convert Ready PULA RTS ;/****************************************/; ;/* Initial the SCI Port for 68HC11 CPU */; ;/* Baud rate : Crystal Oscilator 8MHz */; ;/* Format SCI : Data 8 bit,1 Stop bit */; ;/****************************************/; ; INIT_SCI LDAA #%00110000 ; Set Baud rate 9600 ;LDAA #%00110001 ; Set Baud rate 4800 ;LDAA #%00110010 ; Set Baud rate 2400 ;LDAA #%00110011 ; Set Baud rate 1200 STAA BAUD,X LDAA #$00 STAA SCCR1,X ; Set 8bit data,1 Stop bit LDAA #$0C ; Enable RXD,TXD pin STAA SCCR2,X RTS ;/********************************/; ;/* Transmit ASCII 1byte to SCI */; ;/* Input : ACCA (ASCII Code) */; ;/* Output : ASCII to SCI Port */; ;/* Register : ACCA,ACCB */; ;/********************************/; ; TX_SCI PSHB TX_SCI1 BRCLR SCSR,X $80 TX_SCI1 ; Wait TDRE=1 (Buffer Empty) LDAB SCSR,X ; Read For Clear Status STAA SCDR,X ; SEND character to SCI TX_SCI2 BRCLR SCSR,X $40 TX_SCI2 ; Wait TC=1 (SEND Complete) PULB RTS ;/*************************/; ;/* Receive data from SCI */; ;/* INPUT : SCI Port */; ;/* OUTPUT : ACCA */; ;/*************************/; ; RX_SCI BRCLR SCSR,X $20 RX_SCI ; Wait RDRF=1 (Receive Ready) LDAA SCSR,X ANDA #$0E BNE RX_SCI1 ; Rx Fail LDAA SCDR,X ; Rx OK = Read data BRA RX_SCI2 RX_SCI1 LDAA SCDR,X CLRA ; Rx Fail Clear Data RX_SCI2 RTS ;/*******************************/; ;/* Print Out Data to SCI Port */; ;/* Usage : JSR PRINT_SCI */; ;/* : FCC 'xxxxxxx' */; ;/* : FCB $00 */; ;/* Register : ACCA */; ;/* Call Sub : TX_SCI */; ;/* Note : Last byte = 00 */; ;/* : For EXT. Memory */; ;/*******************************/; ; PRINT_SCI PULY ; Pop Stack (PC Value) PSHA PSHB PRN_SCI1 LDAA 0,Y ; Get Data For Print CMPA #$00 ; Check Last Byte BNE PRN_SCI2 ; Jump if not Last Byte BRA PRN_SCI3 PRN_SCI2 JSR TX_SCI ; SEND Data INY BRA PRN_SCI1 PRN_SCI3 INY ; Point to Next Instruction PULB PULA PSHY ; Push Stack (PC Value) RTS ORG $FFFE ; Reset Vector FDB START ENDส่วนสำหรับเขียนเพื่อทำงานกับมอนิเตอร์ของอีทีที จะเป็นดังนี้
;/**********************************/; ;/* Demo Program For A/D 8 Channel */; ;/* Hardware : ET-CP68HC11 Ver 2.0 */; ;/* Complier : AS11NEW.EXE (V1.03) */; ;/**********************************/; ; BAUD EQU $2B ; SCI Baud rate control Reg. SCCR1 EQU $2C ; SCI Control Register1 SCCR2 EQU $2D ; SCI Control Register2 SCSR EQU $2E ; SCI Status Register SCDR EQU $2F ; SCI Data (RDR=Read,TDR=Write) ; ADCTL EQU $1030 ; ADC Control Register ADR1 EQU $1031 ; ADC Result Register1 ADR2 EQU $1032 ; ADC Result Register2 ADR3 EQU $1033 ; ADC Result Register3 ADR4 EQU $1034 ; ADC Result Register4 OPTION EQU $1039 ORG $2200 ; Start of Debugger User Area MAIN LDX #$1000 ; Base Register Index LDAA #%10010011 ; Initial Option ADC STAA OPTION JSR INIT_SCI ; Initial SCI = 9600,N,8,1,P ; JSR PRINT_SCI FCB $0D,$0A FCC '*********** Test Analog to Digital ***********' FCB $0D,$0A FCC 'ADC1 ADC2 ADC3 ADC4 ADC5 ADC6 ADC7 ADC8' FCB $0D,$0A,$00 TEST_ADC JSR MULT_ADC1 ; Convert ADC1..4 LDAA #' ' JSR TX_SCI LDAA ADR1 ; ADC1 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR2 ; ADC2 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR3 ; ADC3 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR4 ; ADC4 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; JSR MULT_ADC2 ; Convert ADC5..8 LDAA ADR1 ; ADC5 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR2 ; ADC6 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR3 ; ADC7 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #' ' JSR TX_SCI JSR TX_SCI JSR TX_SCI JSR TX_SCI ; LDAA ADR4 ; ADC8 JSR HEX_2ASC JSR TX_SCI TBA JSR TX_SCI LDAA #$0D JSR TX_SCI JMP TEST_ADC ;/*******************************/; ;/* Convert Hex to ASCII to A,B */; ;/* Input = ACCA */; ;/* Output = ACCA Hi-byte */; ;/* ACCB Low-byte */; ;/*******************************/; ; HEX_2ASC PSHA JSR HEX_TO_ASC TAB ; Transfer B <- A (B = Lo byte) PULA RORA ; Swap A RORA RORA RORA JSR HEX_TO_ASC RTS ;/*******************************/; ;/* Convert Hex (0-F) to ASCII */; ;/* Input = Register ACC (Hex) */; ;/* Output = Register ACC (ASC) */; ;/*******************************/; ; HEX_TO_ASC CLC ; clear carry bit ANDA #%00001111 CMPA #$09 BNE HTOA1 SEC ; set carry bit HTOA1 BCC HTOA2 ; > 0AH ORAA #$30 ; < 0AH JMP END_HTOA HTOA2 SBCA #$09 ; > 0AH ORAA #$40 END_HTOA RTS ;/*********************************/; ;/* Multiple 4 Channel Low (LSB) */; ;/* Output : ADR1 (Ch1 Result) */; ;/* : ADR2 (Ch2 Result) */; ;/* : ADR3 (Ch3 Result) */; ;/* : ADR4 (Ch4 Result) */; ;/*********************************/; ; MULT_ADC1 PSHA LDAA #%00010000 ; Multiple 4 Channel LSB STAA ADCTL CONVERT1 LDAA ADCTL ANDA #$80 ; Convertion Complete Flag BEQ CONVERT1 ; Wait ADC Convert Ready PULA RTS ;/*********************************/; ;/* Multiple 4 Channel High (MSB) */; ;/* Output : ADR1 (Ch5 Result) */; ;/* : ADR2 (Ch6 Result) */; ;/* : ADR3 (Ch7 Result) */; ;/* : ADR4 (Ch8 Result) */; ;/*********************************/; ; MULT_ADC2 PSHA LDAA #%00010100 ; Multiple 4 Channel MSB STAA ADCTL CONVERT2 LDAA ADCTL ANDA #$80 ; Convertion Complete Flag BEQ CONVERT2 ; Wait ADC Convert Ready PULA RTS ;/****************************************/; ;/* Initial the SCI Port for 68HC11 CPU */; ;/* Baud rate : Crystal Oscilator 8MHz */; ;/* Format SCI : Data 8 bit,1 Stop bit */; ;/****************************************/; ; INIT_SCI LDAA #%00110000 ; Set Baud rate 9600 ;LDAA #%00110001 ; Set Baud rate 4800 ;LDAA #%00110010 ; Set Baud rate 2400 ;LDAA #%00110011 ; Set Baud rate 1200 STAA BAUD,X LDAA #$00 STAA SCCR1,X ; Set 8bit data,1 Stop bit LDAA #$0C ; Enable RXD,TXD pin STAA SCCR2,X RTS ;/********************************/; ;/* Transmit ASCII 1byte to SCI */; ;/* Input : ACCA (ASCII Code) */; ;/* Output : ASCII to SCI Port */; ;/* Register : ACCA,ACCB */; ;/********************************/; ; TX_SCI PSHB TX_SCI1 BRCLR SCSR,X $80 TX_SCI1 ; Wait TDRE=1 (Buffer Empty) LDAB SCSR,X ; Read For Clear Status STAA SCDR,X ; SEND character to SCI TX_SCI2 BRCLR SCSR,X $40 TX_SCI2 ; Wait TC=1 (SEND Complete) PULB RTS ;/*************************/; ;/* Receive data from SCI */; ;/* INPUT : SCI Port */; ;/* OUTPUT : ACCA */; ;/*************************/; ; RX_SCI BRCLR SCSR,X $20 RX_SCI ; Wait RDRF=1 (Receive Ready) LDAA SCSR,X ANDA #$0E BNE RX_SCI1 ; Rx Fail LDAA SCDR,X ; Rx OK = Read data BRA RX_SCI2 RX_SCI1 LDAA SCDR,X CLRA ; Rx Fail Clear Data RX_SCI2 RTS ;/*******************************/; ;/* Print Out Data to SCI Port */; ;/* Usage : JSR PRINT_SCI */; ;/* : FCC 'xxxxxxx' */; ;/* : FCB $00 */; ;/* Register : ACCA */; ;/* Call Sub : TX_SCI */; ;/* Note : Last byte = 00 */; ;/* : For EXT. Memory */; ;/*******************************/; ; PRINT_SCI PULY ; Pop Stack (PC Value) PSHA PSHB PRN_SCI1 LDAA 0,Y ; Get Data For Print CMPA #$00 ; Check Last Byte BNE PRN_SCI2 ; Jump if not Last Byte BRA PRN_SCI3 PRN_SCI2 JSR TX_SCI ; SEND Data INY BRA PRN_SCI1 PRN_SCI3 INY ; Point to Next Instruction PULB PULA PSHY ; Push Stack (PC Value) RTS ENDสามารถ download ไฟล์ตัวอย่างของบอร์ด พร้อม assembler ได้เลยครับ
